SwiftScan Software

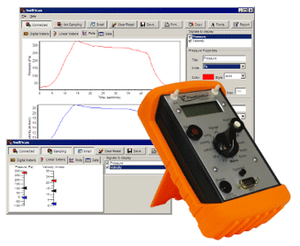

SwiftScan allows direct computer data acquisition of pressure and speed flow measurements using the FKS 1DP-PBM or FKS 1DP-PBM-E meters.
Features
- Easy to use: Wizard style interface steps through the setup and operational procedures.
- Excel link. Allows direct transfer of data from meter to worksheet.
- Data logging with numerous sampling options. Control over the number of readings in a sample, the spacing between samples and the total number of samples taken.
- Data display. Data is displayed as numbers or gauges and saved data can be shown as plots or tables.
- Remote monitoring: Thanks to the serial interface, the FKT instrument can be placed at hundreds of feet from the computer.
- Reads & Calculates:
- Differential pressure measurements
- Gas speed measurements
- Extensive set of metric and imperial units
- Software customization is available
Screenshots

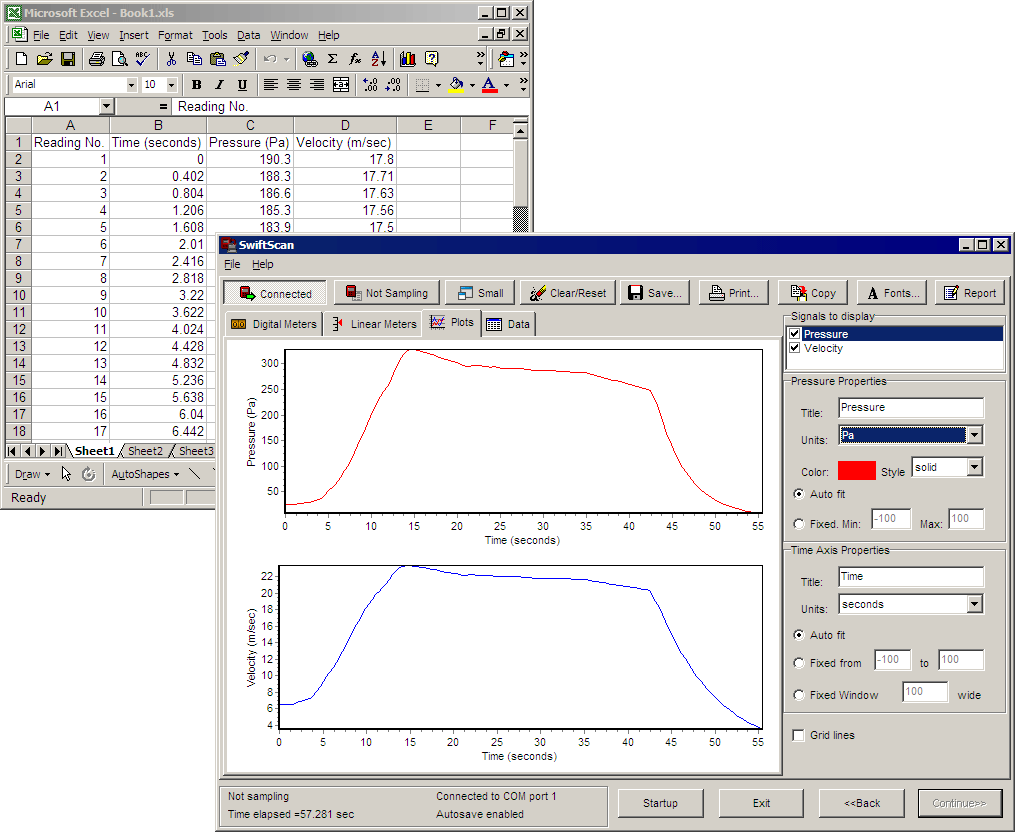

Monitoring a signal and transferring data to Excel | Logged data saved into Excel and plotted |
Requirements
- SwiftScan is compatible with FKS 1DP-PBM and FKS 1DP-PBM-E meters.
- Windows 95, 98, ME, 2000, XP, Vista, 7, 8 or 10.
- Serial port with a 9-pin connector or USB port with optional USBA2 adapter (available at the Ordering section).
- Microsoft Excel 97 or above for Excel link.
Ordering Information
Part Number |
Description | Price |
SwiftScan |
Software package contains:
|
$95.00 |
USBA | USB to serial adapter for computers with no serial port. Length: 1ft (30cm). Windows 98/2000/ME/XP. | $25.00 |
CABLE6 | Serial cable replacement - 6ft (1.8m) | $10.00 |
CABLE50 | 50ft (15.2m) serial cable. | $30.00 |
Brand and product names referred to are trademarks or registered trademarks of their respective owners.
All prices are given in USD.
Specifications and prices are subject to change without notice.
